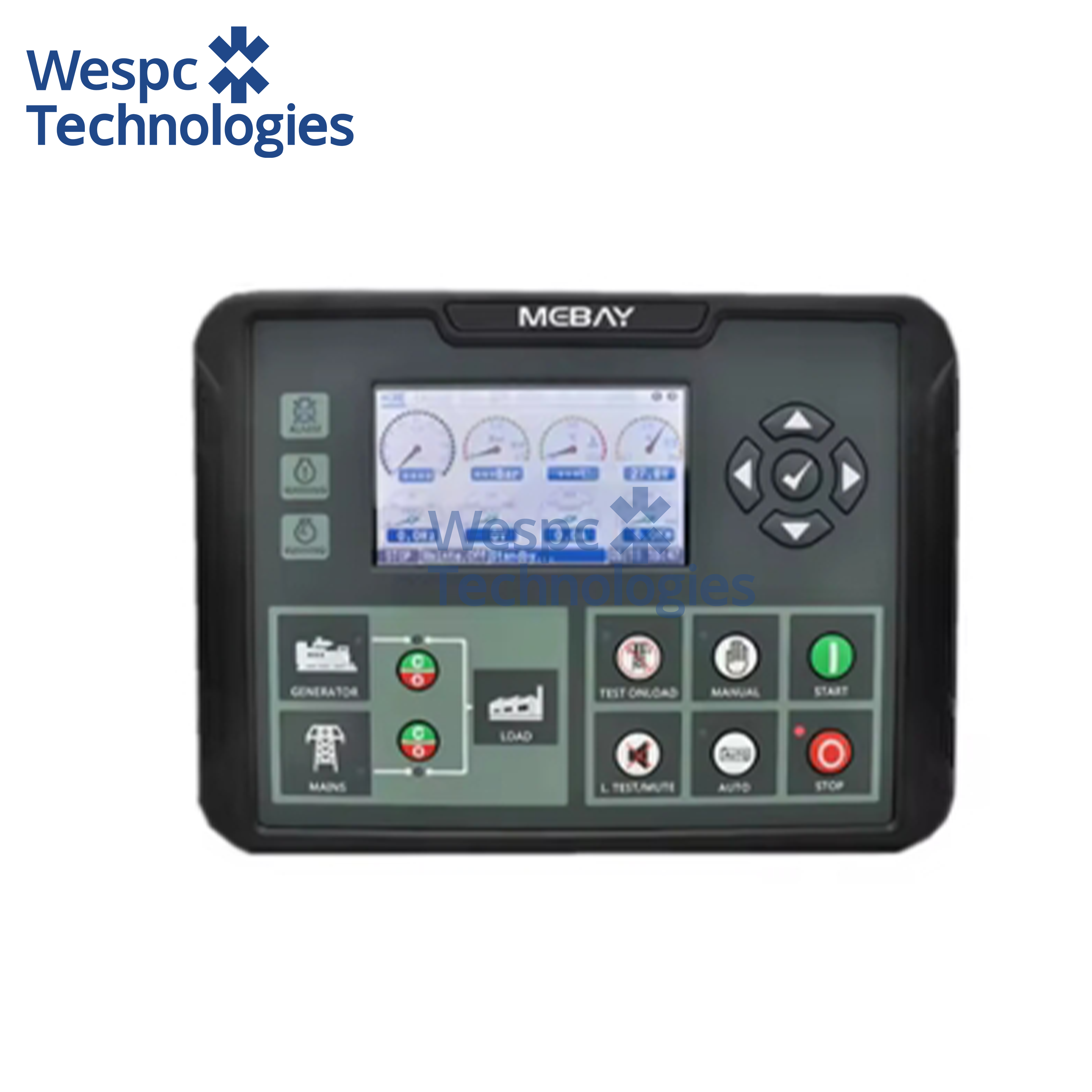

WESPEC Original Mebay DC92DR Generator Start Stop Controller Genset Controller

Name: WESPEC Original Mebay DC92DR Generator Start Stop Controller Genset Controller
Brand: Mebay
Price: 120 USD

China WESPEC Original Mebay DC92DR Generator Start Stop Controller Genset Controller wholesale

Brand Name : Mebay

Model Number : DC92Dr

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : U$120-139（1 piece）

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : In Stock

Delivery Time : 5-10 Work Days

Packaging Details : Carton

Stock : Yes

Packing : Carton

Selling Units : 1 piece

Color : Black

Certificate : ISO9001

Size : 210*160*50 mm

Contact Now

WESPEC Original Mebay DC92DR Generator Start Stop Controller Genset Controller

DC Supply	DC9V----36V Continuous
MAX Accumulating Time	99999.9Hours(Min Store time:6min)
Rotate speed sensor Frequency	200-10000Hz
Operation Temperature	-20-65℃
Storage Condition	-40-85℃
Overall dimension	210mm160mm50mm
Gross weight	0.85Kg
Color	Black

Summary

This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting. 4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.

Main Functions

AMF Function: Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset
Real time clock: Preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
The black box function: Save the relevant parameters of the unit when the fault alarm occurs in real time.
Three class protection countdown function: can set the maintenance time or date.

Technical Features

* Totally 10 relay’s output, among which 8 relay output can be self-configurable, each relay can be set as max 50 functions,
besides, there are 2 groups as non-contact terminals.

* With 5 switches input, up to 40 functions optional;
* 6 sensor simulation input connectors, 6 input types is configurable and various kinds of units can be set.
* Battery charging control function,which can protect the battery according to battery voltage status.
* Sensor can be self-defined by front face button or PC software.
