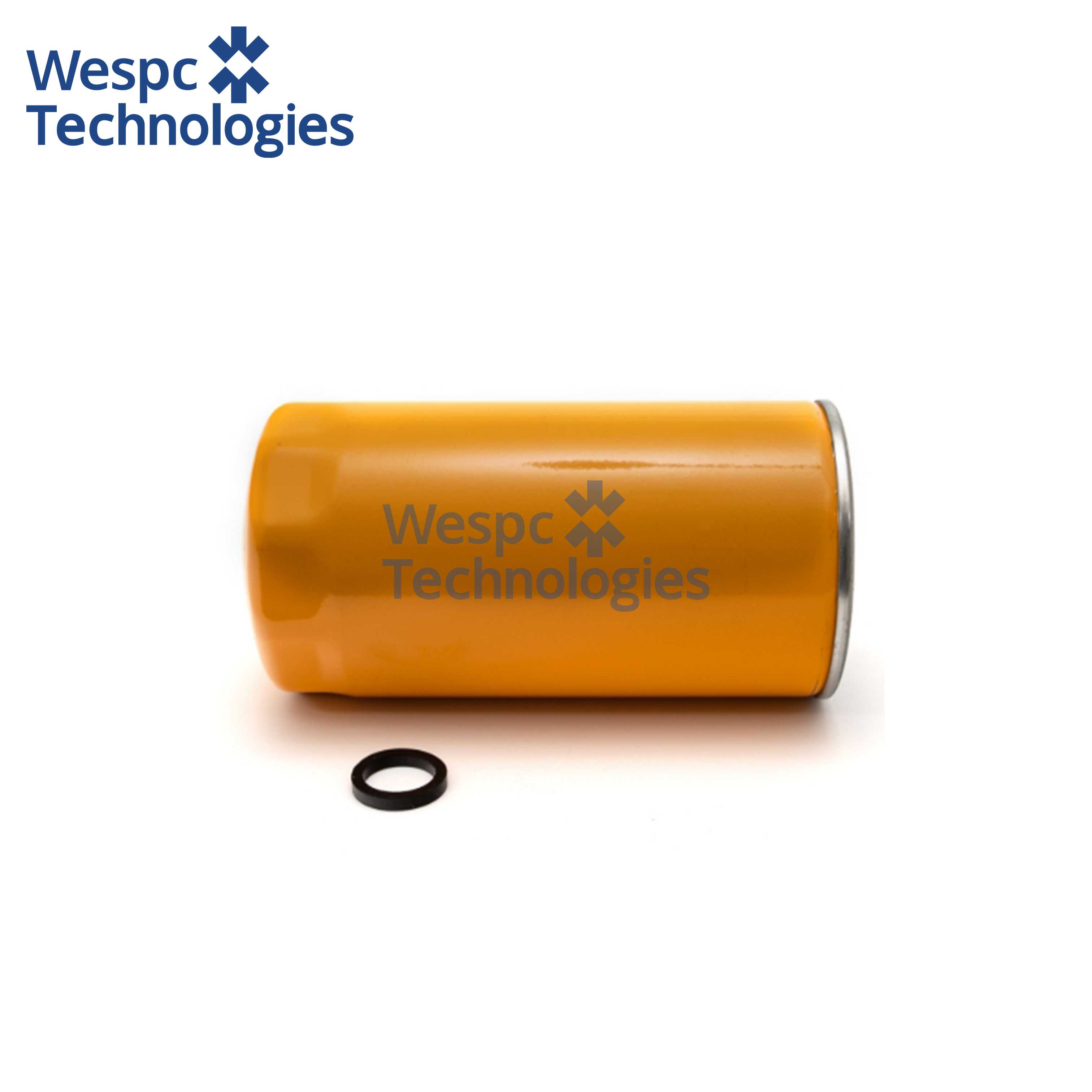

WESPC Filter OD19596 Fuel Element For TX300 TX325 TX375 TX400 Diesel Engine Series
| Quality Class: | High Quality |
| After-sales Service Provided | Video Technical Support, Online Support |
| Packaging | Carton |
| Place of Origin | China |
| Warranty | 1 Year |
| Stock | Yes |
Application Filter OD19596 is purpose-engineered for diesel engines including TX300, TX325, TX375, and TX400 series. These engines are widely used in generator sets, commercial vehicles, and industrial machinery where clean fuel delivery is essential for injection system protection and combustion efficiency. The filter ensures consistent fuel purity by removing water and particulate contaminants before they reach the engine.
Technical specifications Thread size M24×1.5, outer diameter 94.5 mm, overall length 177.8 mm, gasket outer diameter 70 mm, gasket inner diameter 60 mm. The unit supports spin-on mounting and is compatible with standard fuel filter heads used in mid- to heavy-duty diesel platforms. Filtration efficiency is rated at 99% for 20 micron particles.
Material & performance features Constructed with high-efficiency filter media and a corrosion-resistant steel shell, the element offers reliable separation of fine particles and water. The sealing gasket is designed for high-pressure tolerance and leak prevention. The unit is tested for fuel compatibility, vibration resistance, and long service intervals in demanding operating environments.
Interchange part numbers OD19596, P550365, 901201, FF4036, CV69219, POD19596
